Cross section of the earth showing the distribution of igneous rocks

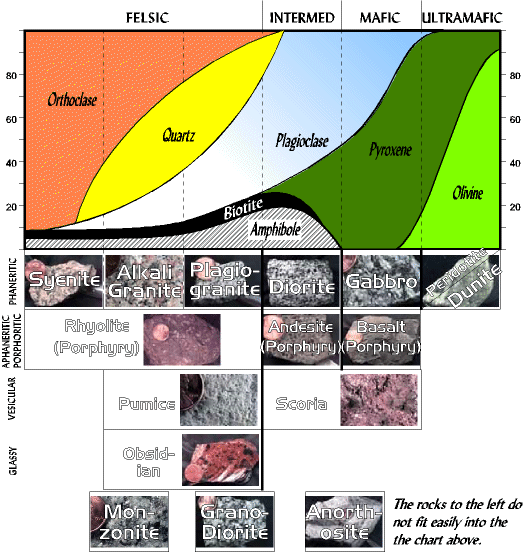

Mineral Percent Abundance Chart
|
The table at the top of the page is read vertically, from zero% at the bottom to 100% at the top (scale on left and right sides). For example, the composition of the rock on the farthest right side of the chart is (bottom up) about 92% olivine, and the remaining composition to the top about 8% pyroxene. |
