DIORITE

   Detail


Another specimen

  Return to Classification; pdf version
Typical Minerals
Na/Ca PLAGIOCLASE & MAFICS (amphibole)
about 50/50
Quartz - absent to trace
Description

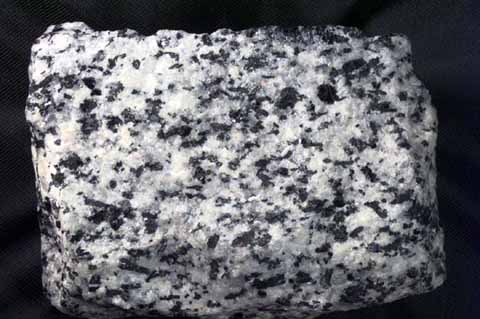

     An intermediate igneous rock from the middle of Bowen's Reaction Series. Typically intermediate colored with a subequal mixture of light colored sodium plagioclase and dark colored amphibole (although biotite may also be present). Appearance is often described as "salt and pepper" because of the mix. The mafic/plagioclase mix can vary widely, however. This specimen is low on the mafic side, but the next specimen runs high.
     Quartz is sometime present between 5% and 20%, but if quartz exceeds 20% the rock is called a "grano-diorite."
      What keeps this from then being a monzonite is the high mafic content; monzonites have less than 5% mafics. Orthoclase is universally absent.
   Return to Classification; pdf version
   Return to Previous Rock
Tectonic Association
      Diorite is the result of fractional melting of a mafic parent rock above a subduction zone. It is commonly produced in volcanic arcs, and in cordilleran mountain building (subduction along the edge of a continent, such as with the Andes Mountains). It emplaces in large batholiths (many thousands of square miles) and sends magma to the surface to produce composite volcanoes with andesite lavas.
   Tectonic Cross Section - pdf version
